Industronics Enginnering

Customized pH control systems for all wastewater and pH neutralization applications found in industry.

Common applications and features include:

Continuous Flow Through pH Neutralization:One, Two, and Three Stage Systems
Batch pH Adjustment:Simplex, Duplex, and Triplex Batch
Sequential Batch pH Adjust
Fluoride Reduction Systems
Heavy Metal Reduction
Effluent Monitoring Systems
Supervisory Control And Data Acquisition (SCADA)
Collection / Transfer Systems

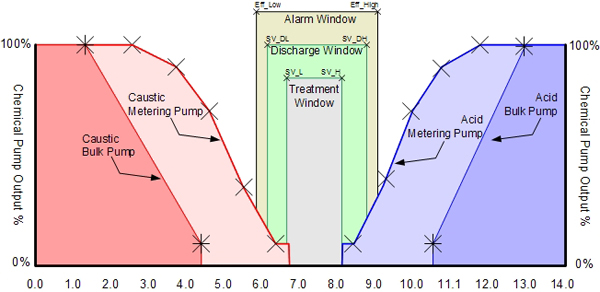

pH Control Curve

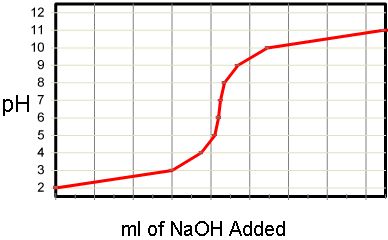

Typical pH Control Curves used with all of our pH adjustment systems. For each pH control stage within a system the tuning parameters for the acid and metering pumps (and bulk assist pumps if used) are independently controlled with non-linear tuning algorithm that can be programmed to any curve, such as a titration curve. pH response is not linear and cannot be controlled as such. Most pH "controllers" on the market are not truly pH controllers because they use simple on / off control or linear control provided by a PID algorithm which is far too simple to account for the ever changing control gain encountered with the logarithmic reaction of pH to control input. A true pH controller MUST have the ability to control to a logarithmic and non-linear response such as the typical pH titration curve shown here.
